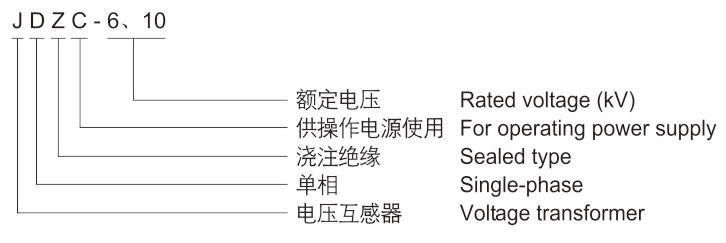

型号含义Type description
技术参数Technical data
型号 Type | 额定电压比 Rated voltgae ration (V) | 额定二次输出 Rated secondary output(VA) | 极限输出 Max.output (VA) | 额定绝缘水平 Rated insulation level (kV) |
JDZC-6 JDZC-10 |
6000/100/220 10000/100/220 | 0.2/3---30/300 0.5/3---50/300 | 500 700 |
7.2/32/60 12/42/75 |
0.2/3---30/400 0.5/3---50/400 | 800 1000 | |||
0.2/3---50/1000 0.5/3---80/1000 |
2000 | |||
0.2/3---50/1500 0.5/3---80/1500 |
3000 |

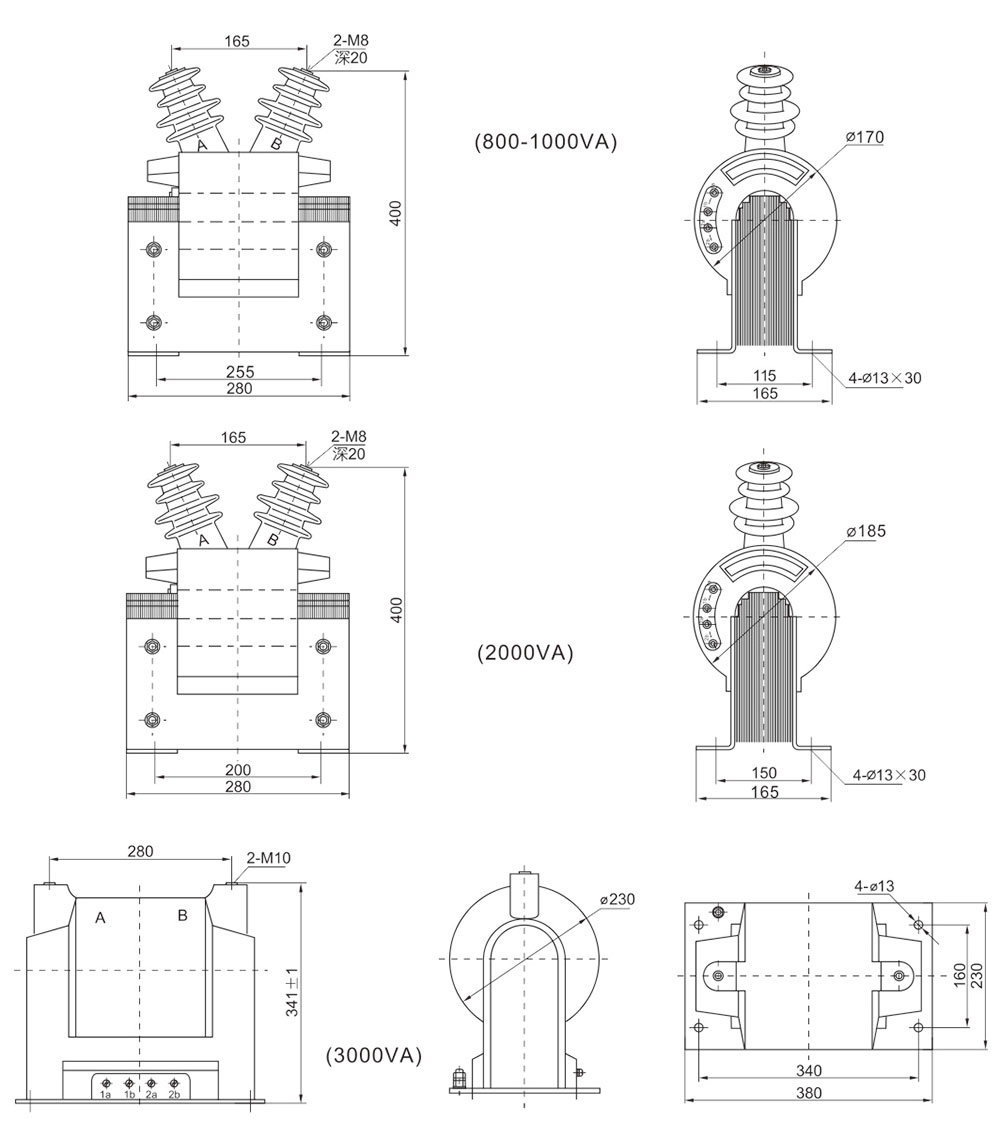

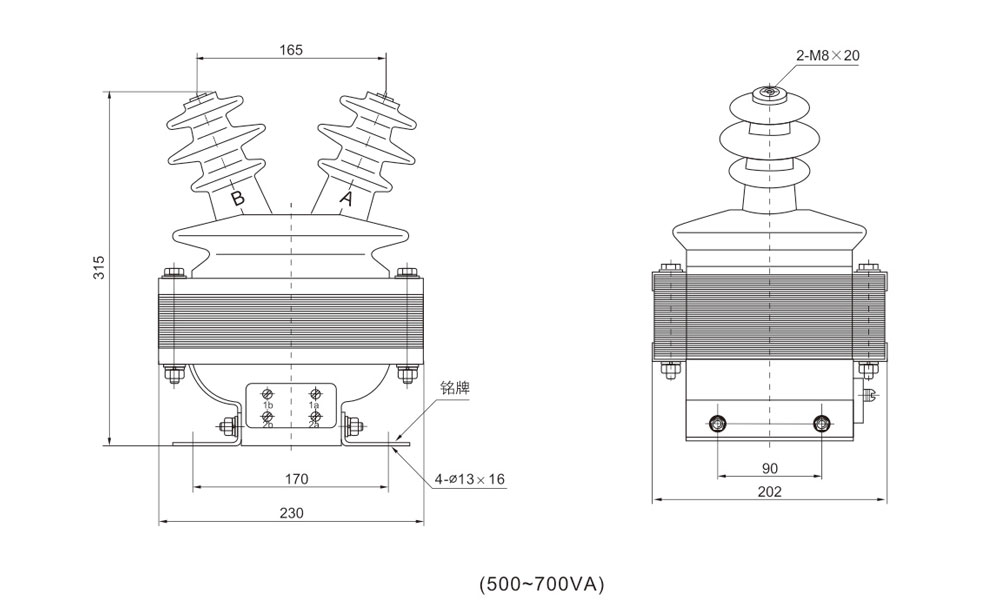

外形及安装尺寸Overall dimension drawing

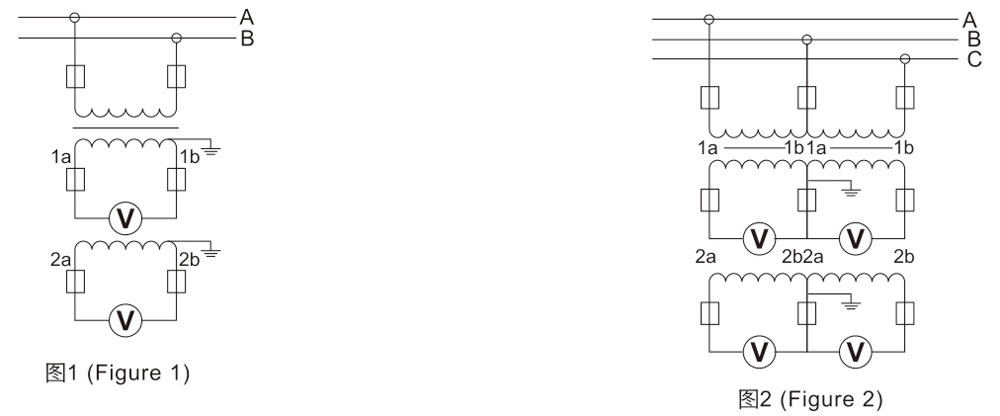

接线图Wiring diagram
