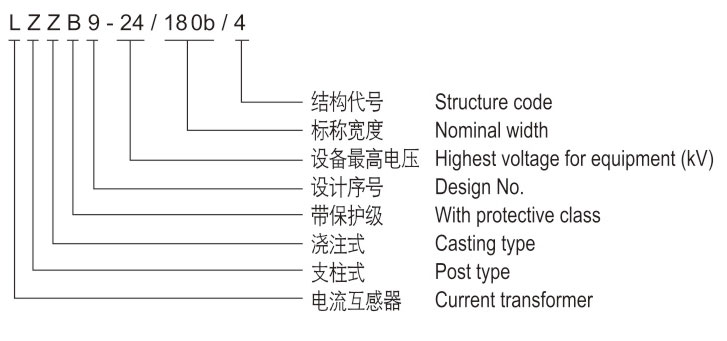

型号含义 Type description
技术参数Technical data
额定一次电流 Rated primary current(A) | 准确级组合 Accuracy classes combination | 额定二次输出 Rated secondary output(VA) | 短时热电流(kA/s) Rated short-time thermal current kA/s | 动稳定电流 Rated dynamic current(kA) | |||
0.2(S) | 0.5(S) | 10P10 | 10P15 | ||||
20-150 |
0.2(S)/0.2 0.2(S)/0.5 0.2(S)/10P10 0.5(S)/10P10 0.2(S)/10P15 0.5(S)/10P15 |
10 |
15 |
15 |
15 | 0.0611n | 0.1511n |
200 | 12 | 30 | |||||
300-500 | 18 | 45 | |||||
600、800 |
15 |
20 |
20 |
15 | 36 | 90 | |
1000、1200 | 60 | 130 | |||||

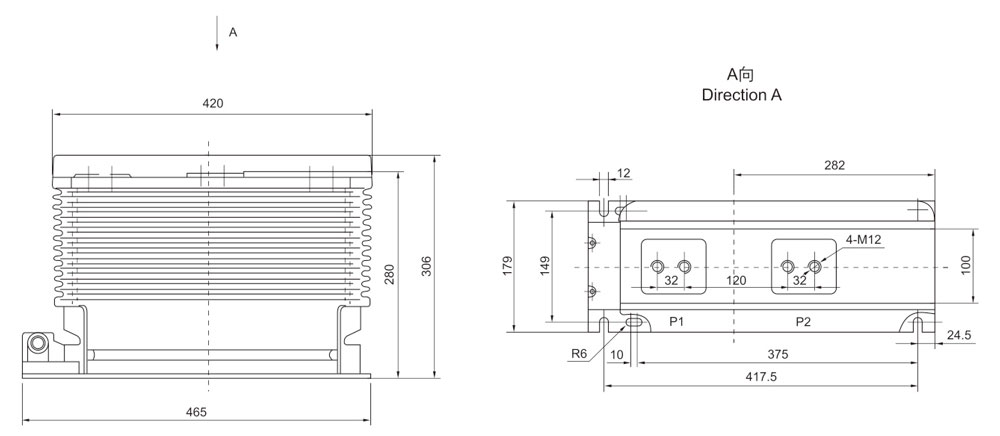

外形及安装尺寸0verall dimension drawing
