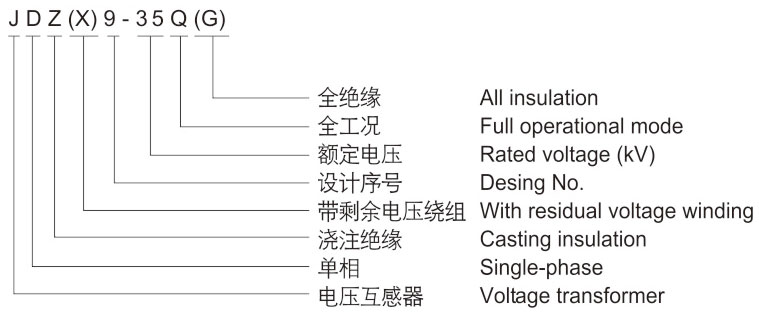

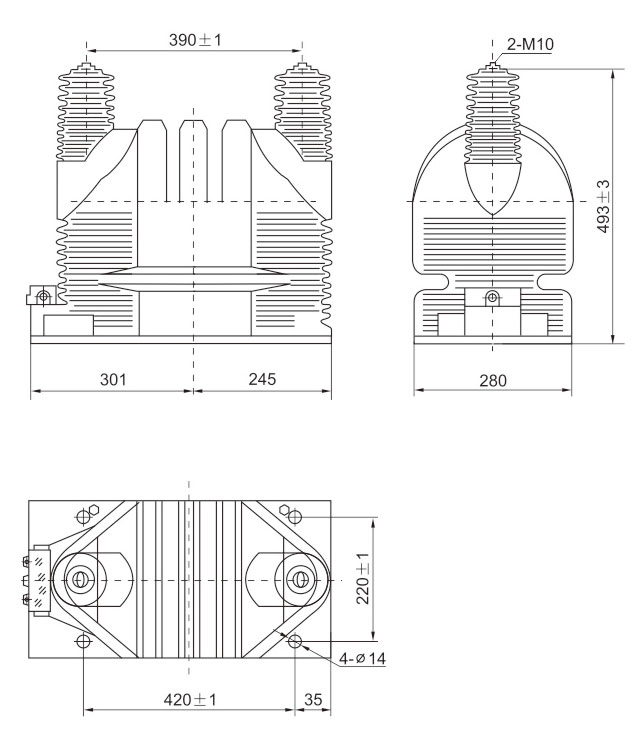

型号含义Type description
技术参数Technical data
型号 Type | 额定电压比 Rated voltage ration (V) | Rated secondary output(VA) | 极限输出 Max.output (VA) | 额定绝缘水平 Rated insulation level (kV) | 备注 Notes | 接线图 Wiring diagram | ||||||
0.2 | 0.5 | 1级 | 3级 | 0.2/0.2 0.2/0.5 | 0.5/0.5 | 6P | ||||||
JDZ9-35Q | 35000/100 |
60 |
120 |
240 |
600 | / | / | / |
800 |
40.5/95/200 |

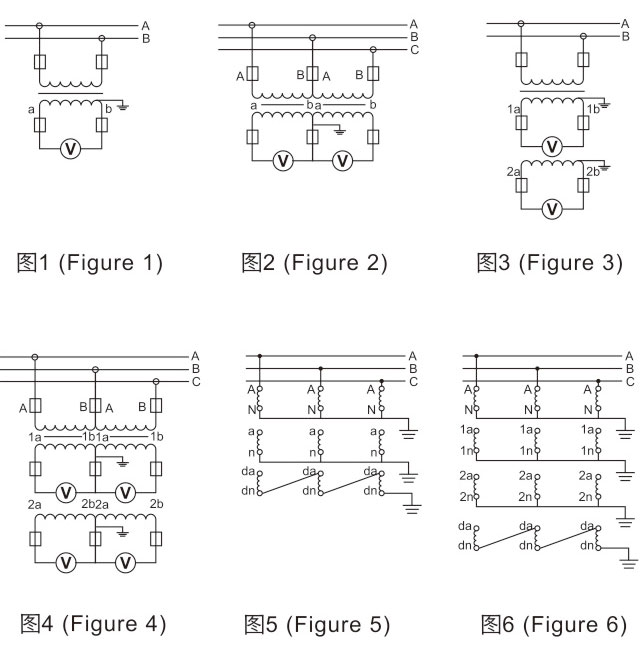

等同 "VKV" Same "VKV" | 图1-图2 Fiagure 1-2 |
35000/100/100 | / | / | 1 | / | 30/30 | 40/40 | / | 500/500 | 图3-图4 Fiagure 3-4 | |||
JDZX9-35G | 35000/100/100 √3/ √3 3 |
30 |
90 |
180 |
500 | / | / |
100 |
600 | 图5 Fiagure 5 图6 Fiagure 6 | ||
35000/100/100/100 √3 / √3/ √3/ 3 | / | / | 1 | / | 15/15 15/20 | 45/45 | 100 | 300/300 |
